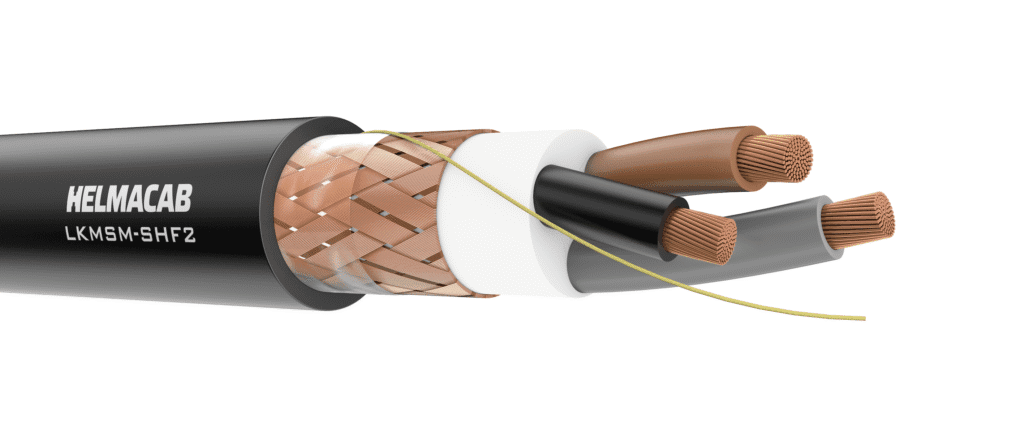

LKMSM-SHF2 0.6/1kV

Conductor
Stranded copper conductor 1.0-10 mm², IEC 60228 Class 2
Stranded copper conductor 16-300 mm², IEC 60228 Class 5
Insulation
XLPE, IEC 60092-360
Cabling
Cores twisted together.
Bedding
Extruded filler.
Armour
Copper wire braid, coverage > 90%, IEC 60092-350
Rip cord
For conductors ≥ 16 mm²
Sheath
Thermosetting polyolefin SHF2, IEC 60092-360
Standard colour black, other colours on request
Application
Armoured power cable with extruded filler. For fixed installation in most areas, and on open deck in ships and offshore units. For areas where oil resistant cable required.
Core identification
Colour code for 1…4 core cables, number code for 5 core cables
Marine Type Approvals
ABS, BV, CCS, CRS, DNV, KR, LR, RINA
Rated voltage
AC 0,6/1kV (1.2 kV)
DC 0.9/1.5 kV (if voltage to earth does not exceed 0.9 kV)
Fire performance
IEC 60332-1-2
IEC 60332-3-22
Halogen-free
IEC 60754 series
Smoke emission
IEC 61034 series
Oil resistance
IEC 60811-404 conditions according to 60092-360/SHF2
Min. installation temperature
-15 °C
Operating temperature
-40 – 80 °C fixed installation
Max. Conductor temperature
90 °C
