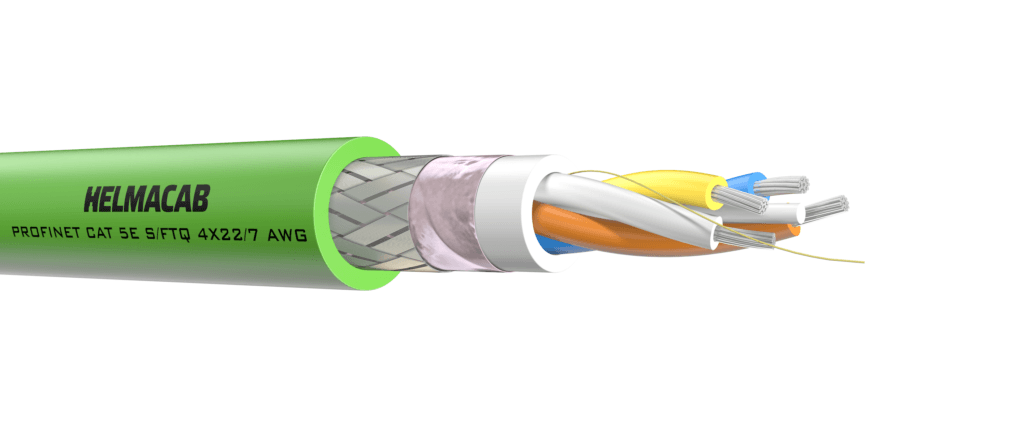

Conductor
Stranded tinned copper conductor 22 AWG/7
Insulation
PE
Cabling
Cabling, four conductors and filler
Inner sheath
LSZH
Standard colour white
Standard colour white
Screen
Aluminium polyester tape
Armour
Tinned copper wire braid, coverage 85%
Sheath
LSZH
Standard colour green
Standard colour green
Reference standard
UL AWM STYLE 21307
Core identification
1. White
2. Yellow
3. Blue
4. Red
2. Yellow
3. Blue
4. Red
Min. Bending Radius (Installation/fixed)
8 x Ø
Nominal Outer Ø
6.5 ± 0.4 mm
Fire performance
IEC 60332-3-24
Halogen-free
IEC 60754 series
Max. Conductor resistance (DC)
≤ 2% @ +20 °C (within a pair)
Max. Conductor resistance (loop) (pair, max 20 °C) (ohm/km)
120.0 Ω/km @ +20 °C
Nom. Mutual capacitance (nF/km)
≤ 56 nF/km @ 1 kHz
Capacitance unbalance pair to ground
≤ 1600 pF/km @ 1 kHz
Min. insulation resistance (20 °C)
5000 MΩ/m
Characteristic impedance
100 ± 15 Ω @ 100 MHz
Rated temperature
+80 °C
Operating temperature
-40 °C to +80 °C
| F (MHz) |
ATT (dB/100 m) |
RL (dB) |
NEXT (dB) |
EL FEXT (dB) |
PD (ns/100 m) |
TCL (dB Min) |
|---|---|---|---|---|---|---|
| 1.0 | – | – | – | – | – | 40.0 |
| 4.0 | 4.0 | 23 | 56 | 52 | 552 | 34.0 |
| 10.0 | 6.3 | 25 | 50 | 44 | 545 | 30.0 |
| 16.0 | 8.0 | 25 | 47 | 40 | 543 | 28.0 |
| 20.0 | 9.0 | 25 | 46 | 38 | 542 | 27.0 |
| 31.2 | 11.4 | 23.3 | 43 | 34 | 540 | 25.1 |
| 62.5 | 16.5 | 21.5 | 38 | 28 | 539 | 22.0 |
| 100.0 | 21.3 | 20.1 | 35 | 24 | 538 | 20.0 |
