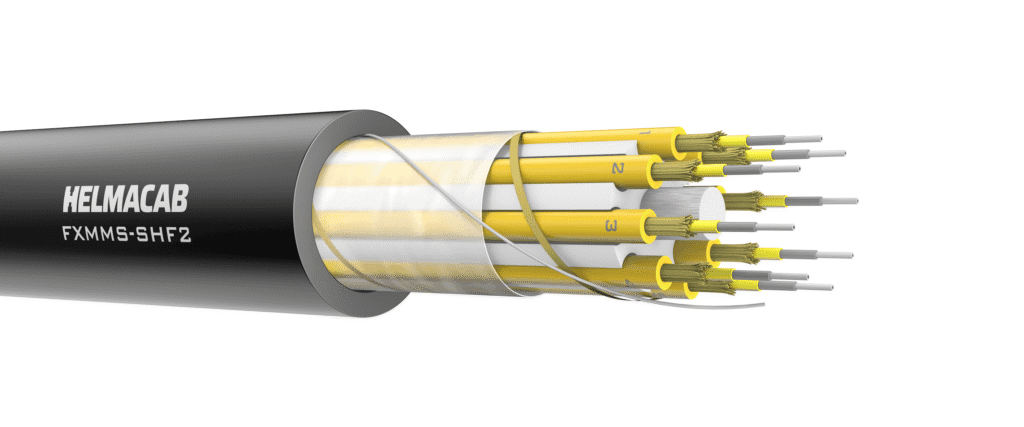

FXMMS-SHF2

Central Element Glass Fiber (Ø mm)
Max 4 Fibers – Ø 2.0 mm
Max 8 Fibers – Ø 2.0 mm
PP-Slotted Core (Ø mm)
Max 4 Fibers – Ø 7.5 mm
Max 8 Fibers – Ø 9.7 mm
Installation Cable Unit
FMS 1 (2 mm)
Yellow colour (SMT Fibers)
Green colour (GKT, OM3T, and OM4T Fibers)
Wrapping
Aramid binding yarn
Fire barrier tape
Rip cord
Ripcord under sheath
Sheath
Thermosetting polyolefin SHF2 on request,
Standard colour blue (SMT fibers)
Standard colour green (GKT, OM3T, and OM4T fibers)
Application
Halogen -free optical fiber installation cable for indoor application.
Tensile strength
Max
4 Fibres		 Max
8 Fibres		 Units Mechanical test
1500 1750 N EN 187000 method 501
Crush strength
Max
4 Fibres		 Max
8 Fibres		 Units Mechanical test
100 mm (PLATE) 4000 7000 N EN 187000 method 504
25 mm (MANDREL) 750 1000 N EN 187000 method 504
Impact strength
Max
4 Fibres		 Max
8 Fibres		 Units Mechanical test
30 30 N EN 187000 method 505
Min. Bending Radius (Installation/fixed)
Max
4 Fibres		 Max
8 Fibres
15/10 x Ø 15/10 x Ø
Nominal Outer Ø
Max
4 Fibres		 Max
8 Fibres		 Unit
10.7 13.1 mm
Cable Weight
Max
4 Fibres		 Max
8 Fibres		 Unit
102 142 kg/km
Marine Type Approvals
BV, DNV, LR, RINA
Fire performance
Eca
IEC 60332-1-2
IEC 60332-3-22
Halogen-free
IEC 60754-1
Smoke emission
IEC 61034 series
Acidity of combustion gases
IEC 60754-2
Conductivity of combustion gases
IEC 60754-2
Min. installation temperature
-15 °C
Operating temperature
-45 °C to +70 °C
