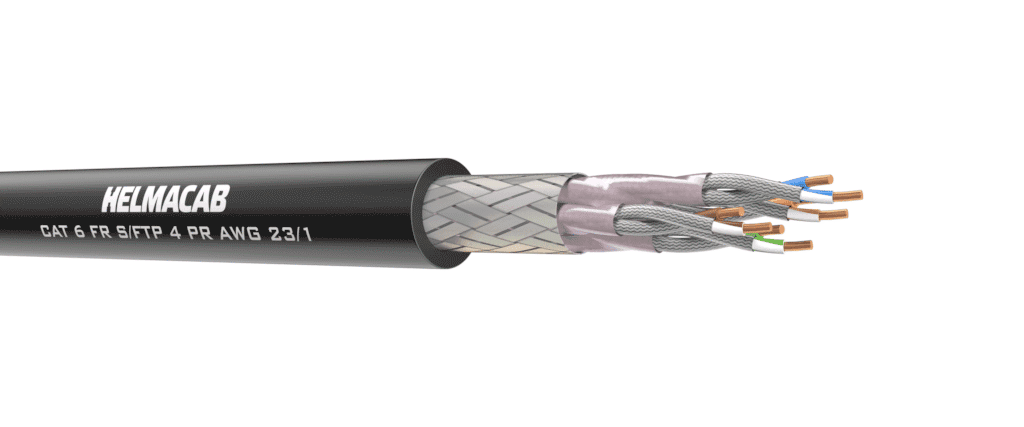

Conductor
Solid copper conductor 23 AWG/1
Insulation
Foam PE + mica tape
Pair shielding
Aluminium foil
Shielding
Tinned copper wire braid
Sheath
LSZH (SHF1)
Core identification
Pair colours:
1. White & Blue
2. White & Orange
3. White & Green
4. White & Brown
1. White & Blue
2. White & Orange
3. White & Green
4. White & Brown
Tensile strength
MAX. RECOMMENDED PULLING TENSION: 110 N
Min. Bending Radius (Installation/fixed)
8 xØ
Nominal Outer Ø
9.1 ± 0,6 mm
Cable Weight
94 kg/km
Marine Type Approvals
Pending DNV, LR, RINA
Packaging
500 m box, 1000 m drum
Fire performance
IEC 60332-1-2
IEC 60332-3-22
IEC 60332-3-22
Fire-resistant
IEC 60332-1-2 / IEC 60332-3-22 (180 min)
Max. Conductor resistance (DC)
95 Ω∕km @ 20 °C
Max. Conductor resistance (loop) (pair, max 20 °C) (ohm/km)
max. 19Ω/100m @20 °C
Nom. Mutual capacitance (nF/km)
≤ 5.6 nF/100 m
Capacitance unbalance pair to ground
≤1600 pF/km @1kHz
Min. insulation resistance (20 °C)
5000 MΩxkm
Characteristic impedance
100±25Ω@100 MHz
Rated temperature
75 °C
Operating temperature
-20 – 75 °C
| F (MHz) |
ATT (dB/100 m) |
RL (dB) |
NEXT (dB) |
PS NEXT (dB) |
ACRF (EL FEXT) (dB/100 m) |
PS ACRF (PS EL FEXT) (dB/100 m) |
PD (ns/100 m) |
|---|---|---|---|---|---|---|---|
| 4.0 | 3.2 | 32 | 96 | 88 | 96 | 85 | 497 |
| 8.0 | 4.5 | 31 | 91 | 86 | 94 | 87 | 493 |
| 10.0 | 5.1 | 33 | 89 | 83 | 92 | 85 | 492 |
| 16.0 | 6.5 | 30 | 87 | 78 | 80 | 75 | 490 |
| 20.0 | 7.3 | 32 | 88 | 80 | 79 | 74 | 489 |
| 25.0 | 8.2 | 34 | 83 | 76 | 76 | 70 | 489 |
| 31.2 | 9.2 | 32 | 82 | 75 | 78 | 72 | 488 |
| 62.5 | 13.3 | 37 | 78 | 70 | 78 | 70 | 486 |
| 100.0 | 16.9 | 34 | 76 | 64 | 73 | 67 | 486 |
| 200.0 | 24.7 | 30 | 67 | 60 | 64 | 57 | 485 |
| 250.0 | 28.0 | 29 | 66 | 58 | 58 | 52 | 484 |
