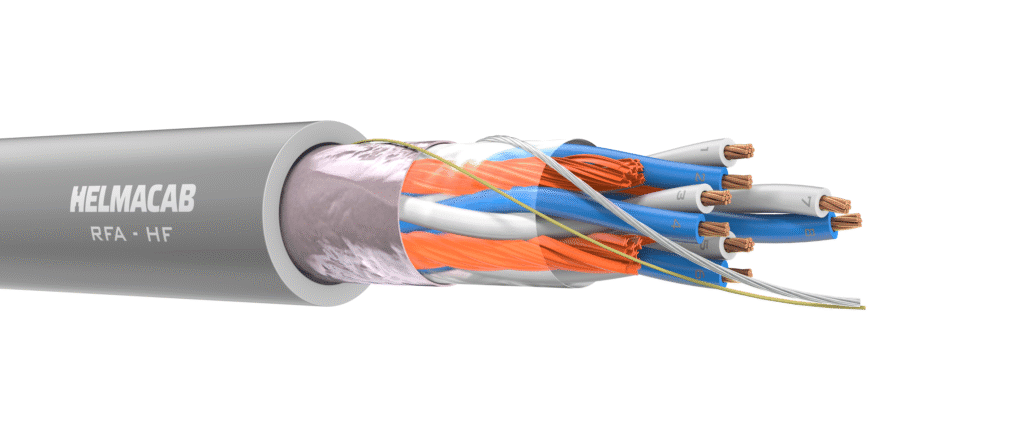

RFA-HF 250 V

Conductor
Stranded copper conductor, IEC 60228 Class 2
Insulation
XLPE, IEC 60092-360
Twisted pair
Two insulated cores twisted together to form a pair
Cabling
Cabling, pairs twisted together. Fillers or dummy cores included in select sizes based on product specifications to obtain symmetrical and round construction.
Bedding
Lapped tape
Collective screen
Tinned copper drain wire (all sizes)
Aluminium polyester tape, coverage 100 %
Sheath
Polyolefin SHF1, IEC 60092-360
Standard colour grey, other colours on request
Application
Screened pair instrumentation and communication cable. For fixed installation in most areas, and on open deck in ships and offshore units, especially when lightweight cables are needed. If the cable is exposed to direct sunlinght, protective covering or cable with black outer sheath is recommended.
Core identification
Pair colours white and blue
Pair identification with colour code and identification number
Marine Type Approvals
ABS, BV, CCS, CRS, DNV, KR, LR, RINA
Rated voltage
150/250 V (300 V)
Fire performance
IEC 60332-1-2
IEC 60332-3-22
Halogen-free
IEC 60754 series
Smoke emission
IEC 61034 series
Min. installation temperature
-15 ° C
Operating temperature
-40 – 80 °C fixed installation
Max. Conductor temperature
90 ° C
Loop (pair, max 20 °C) (ohm/km)
0.5 mm² – 80 Ω∕km
0.75 mm² – 52 Ω∕km
1.5 mm² – 24.4 Ω∕km
Pair capacitance (nom. 1 kHz) (nF/km)
0.5 mm² – 55 nF∕km
0.75 mm² – 50 nF∕km
1.5 mm² – 60 nF∕km
Loop inductance (nom.) (mH/km)
0.5 mm² – 0,6 mH∕km
0.75 mm² – 0,6 mH∕km
1.5 mm² – 0.7 mH∕km
Insulation resistance (20 °C) (Mohm/km)
0.5 mm² – ≥ 1500
0.75 mm² – ≥ 1500
1.5 mm² – ≥ 1500
