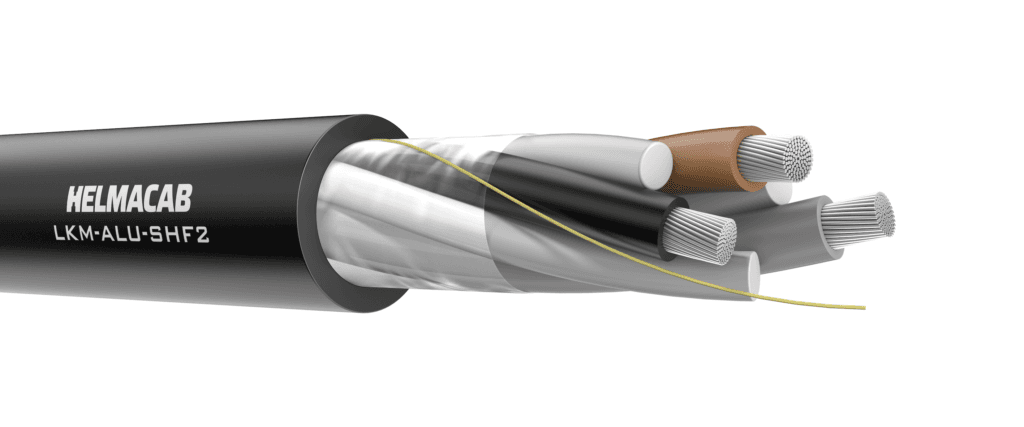

LKM-ALU-SHF2 0.6/1 kV

Conductor
Stranded aluminium conductor 35-185 mm², IEC 60228 class 2 fine stranded
Insulation
XLPE, IEC 60092-360
Cabling
Fillers or dummy cores included in select sizes based on product specifications to obtain symmetrical and round construction.
Sheath
Thermosetting polyolefin SHF2
Standard colour black, other colours on request
Application
For fixed installtion in most areas and open deck ships and offshore units
Marine Type Approvals
DNV
Rated voltage
AC 0,6/1kV (1.2 kV)
DC 0.9/1.5 kV (if voltage to earth does not exceed 0.9 kV)
Fire performance
IEC 60332-1-2
IEC 60332-3-22
Halogen-free
IEC 60754 series
Smoke emission
IEC 61034 series
Oil resistance
IEC 60811-404 conditions according to 60092-360/SHF2
Min. installation temperature
-15 ° C
Operating temperature
-40 °C – 80 °C
Max. Conductor temperature
90 °C
