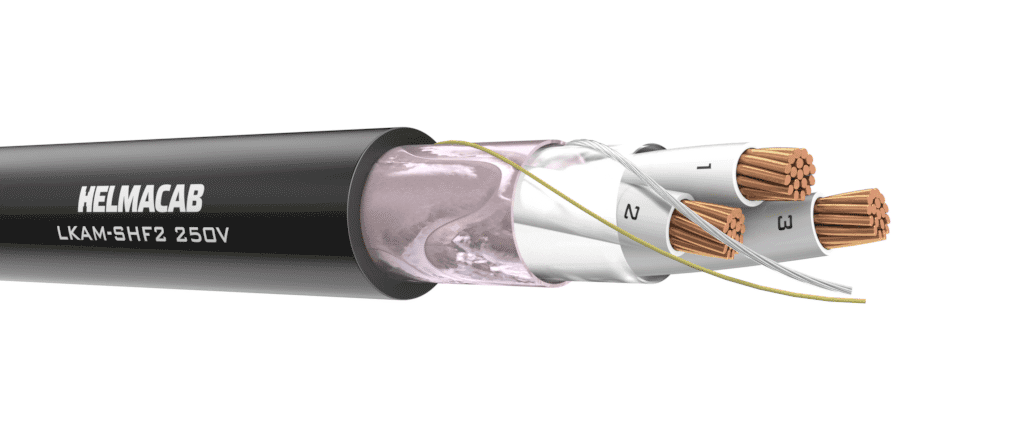

LKAM-SHF2 250V

Conductor
Stranded copper conductor, IEC 60228 Class 2
Insulation
XLPE, IEC 60092-360
Cabling
Cores twisted together, covered by separator tape
Screen
Aluminium polyester tape, coverage 100%.
Drain wire tinned copper.
Sheath
Thermosetting polyolefin SHF2, IEC 60092-360
Standard colour grey, other colours on request
Application
Screened control and instrumentation cable. For fixed installation in most areas, and on open deck in ships and offshore units. For areas where oil resistant cable required. If the cable is exposed to direct sunlight, protective covering or cable with black outer sheath is recommended.
Core identification
Number code for core cables
Marine Type Approvals
ABS, BV, CCS, CRS, DNV, KR, LR, RINA
Rated voltage
AC 150/250 V (300 V)
DC 225 / 375 V (if voltage to earth does not exceed 225 V)
Fire performance
IEC 60332-1-2
IEC 60332-3-22
Halogen-free
IEC 60754 series
Smoke emission
IEC 61034 series
Oil resistance
IEC 60811-404 conditions according to 60092-360/SHF2
Min. installation temperature
-15 °C
Operating temperature
-40 – 80 °C fixed installation
Max. Conductor temperature
90 °C
