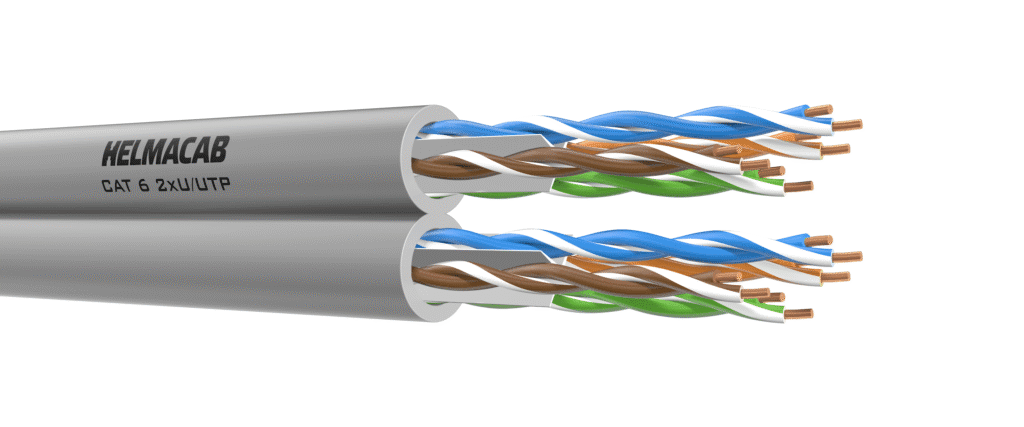

Conductor
Solid copper conductor 24 AWG/1
Insulation
Solid PE
Sheath
LSZH
Core identification
Pair colours:
1. White & Blue
2. White & Orange
3. White & Green
4. White & Brown
1. White & Blue
2. White & Orange
3. White & Green
4. White & Brown
Tensile strength
MAX. RECOMMENDED PULLING TENSION: 110 N
Min. Bending Radius (Installation/fixed)
8 xØ/ 4xØ
Nominal Outer Ø
6.0 ± 0.3 mm
Cable Weight
40 kg/km
Packaging
305 m box, 500 m drum
Fire performance
Dca s2, d2, a1
IEC 60332-3-24
IEC 60332-3-24
Max. Conductor resistance (DC)
93.8 Ω∕km @ 20 °C
Max. Conductor resistance (loop) (pair, max 20 °C) (ohm/km)
max. 19Ω/100m @20 °C
Nom. Mutual capacitance (nF/km)
nom. 5.6 nF/100 m
Capacitance unbalance pair to ground
≤160 pF/km @1kHz
Min. insulation resistance (20 °C)
>max. 5000 MΩxkm
Characteristic impedance
100±25Ω@100 MHz
Rated temperature
75 °C
Operating temperature
-20 – 75 °C
| F (MHz) |
ATT (dB/100 m) |
RL (dB) |
NEXT (dB) |
PS NEXT (dB) |
ACRF (EL FEXT) (dB/100 m) |
PS ACRF (PS EL FEXT) (dB/100 m) |
PD (ns/100 m) |
|---|---|---|---|---|---|---|---|
| 1.0 | 2.0 | 20 | 74 | 72 | 68 | 65 | 570 |
| 4.0 | 3.8 | 23 | 65 | 63 | 56 | 53 | 552 |
| 8.0 | 5.3 | 25 | 61 | 59 | 50 | 47 | 547 |
| 10.0 | 6.0 | 25 | 59 | 57 | 48 | 45 | 545 |
| 16.0 | 7.6 | 25 | 56 | 54 | 44 | 41 | 543 |
| 20.0 | 8.5 | 25 | 55 | 53 | 42 | 39 | 542 |
| 25.0 | 9.5 | 24 | 53 | 51 | 40 | 37 | 541 |
| 31.2 | 10.7 | 24 | 52 | 50 | 38 | 35 | 540 |
| 62.5 | 15.4 | 22 | 47 | 45 | 32 | 29 | 539 |
| 100.0 | 19.8 | 20 | 44 | 42 | 28 | 25 | 538 |
| 200.0 | 29.0 | 18 | 40 | 38 | 22 | 19 | 537 |
| 250.0 | 32.9 | 17 | 38 | 36 | 20 | 17 | 536 |
