Conductor
Solid copper conductor
Insulation
Fire resistant ceramic silicone
XLPE
XLPE
Stranding
Pairs cabled together
Tinned copper drain wire under the screen
Tinned copper drain wire under the screen
Screen
Aluminium polyester tape, coverage 100%
Sheath
LSZH Thermoplastic

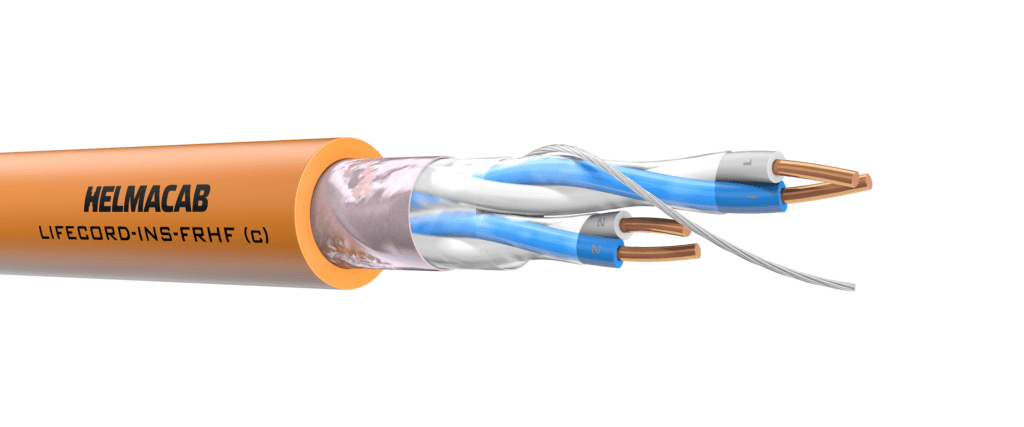

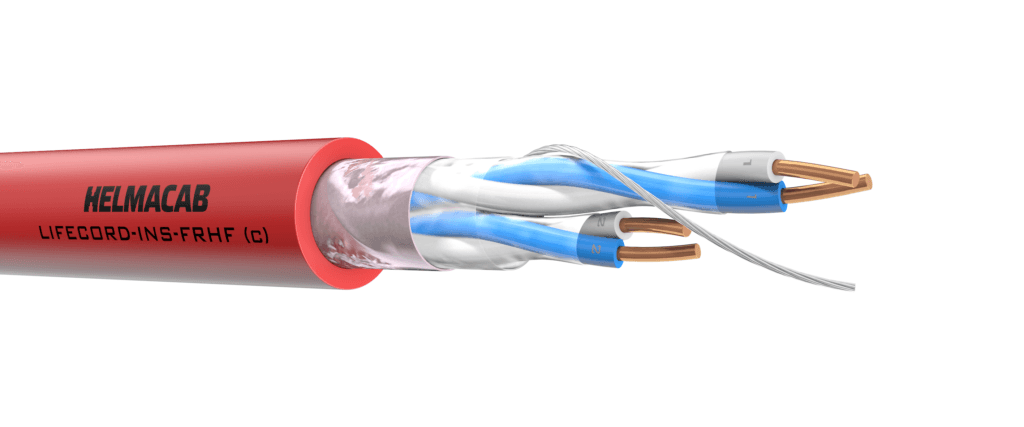

Standard colour orange or red
Standard colour orange or red
Reference standard
EN 50288-7
Application
Fire-resistant collectively screened instrumentation and communication cable 300 V. For fixed installation where the cable has to maintain its functionality during fire.
Core identification
Pair colours white/blue
Black identification numbers
Black identification numbers
Min. Bending Radius (Installation/fixed)
9xØ∕6xØ
Rated voltage
300 V
Fire performance
IEC 60332-1-2
IEC 60332-3-22
IEC 60332-3-22
Fire-resistant
Ø < 20 mm IEC 60331-2
Ø > 20 mm IEC 60331-1
Ø > 20 mm IEC 60331-1
Halogen-free
IEC 60754 series
Smoke emission
IEC 61034 series
Min. installation temperature
-15 °C
Operating temperature
-40 °C to +90 °C
Loop resistance (pair, max 20 °C) (ohm/km)
52
Pair capacitance (nom. 1 kHz) (nF/km)
45
Loop inductance (nom.) (mH/km)
0.6
Insulation resistance (20 °C) (Mohm/km)
≥ 1500
