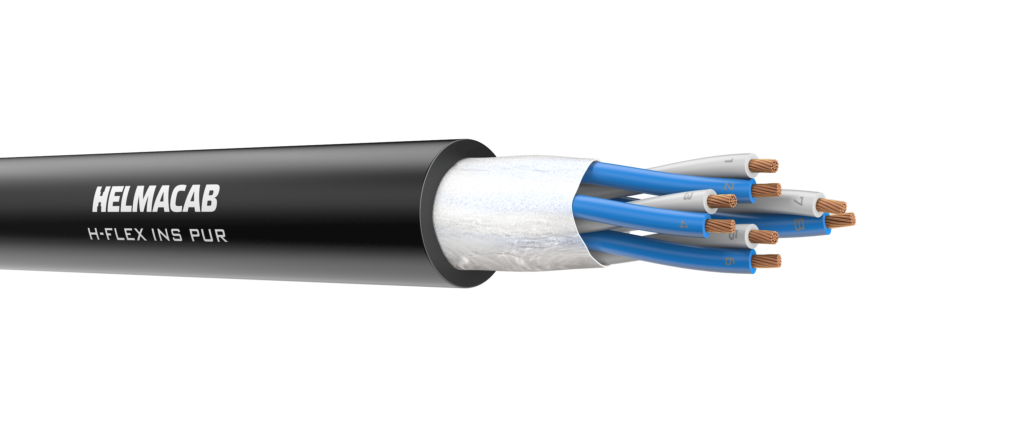

H-FLEX INS PUR 250V

Conductor
Stranded copper conductor, IEC 60228 class 5
Tinned stranded copper conductor on request
Insulation
XPLE plastic
Twisted pair
Two insulated cores twisted togther to form a pair
Reference standard
IEC 60228
Application
Intended for flexible, portable and movable applications such as ship-to-shore cable, outdoor cranes and various industrial applications.
Suitable for flexible applications in machineries, machine tools, robot technics, and can be submersed into water.
Good mechanical characteristics, high tensile strength, resistant to UV, abrasion, chemicals, oil and other fluids.
Good winding and unwinding strength.
Suitable for drag chain use.
Mud resistant according to NEK606.
Core identification
White and blue insulation with black numbers
Tensile strength
MAX. TENSILE LOAD WITHOUT STRENGTH MEMBERS: 15 N/mm2 of phases copper cross section
Min. Bending Radius (Installation/fixed)
Fixed: 4 x Ø < 25 mm < 6 x Ø
Mobile: 6 x Ø < 25 mm < 8 x Ø
S-shape deflection:15 x Ø < 25 mm < 20 x Ø
Marine Type Approvals
ABS, BV, DNV, RINA
Rated voltage
150/250 V (300 V)
Halogen-free
IEC 60754 series
Oil resistance
EN 60811-404 – conditions according to EN 50363-10-2
Mechanical flex test
EN 50396 – conditions according to EN 50525
Operating temperature
-60 – 80 °C fixed use
-35 – 80 °C flexible use
Max. Conductor temperature
90 °C
