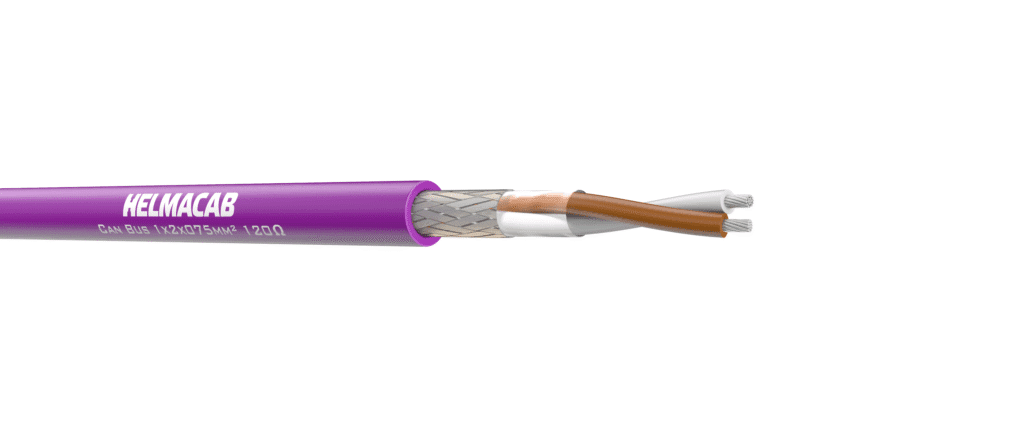

CAN-BUS 1x2x0,75 120 Ω

Conductor
Flexible tinned copper conductor 0.75 mm²
Insulation
PE
Stranding
Two core form a pair
Screen
Tinned copper wire braid
Coverage 80%
Sheath
LSZH
COLOUR : Violet
Core identification
Pair colours:
1. White
2. Brown
Min. Bending Radius (Installation/fixed)
5 x Ø
Nominal Outer Ø
8.7 ± 0.3 mm
Cable Weight
90 kg/km
Marine Type Approvals
DNV,LR,RINA
Operating voltage
30V
Test voltage
1000 V
Fire performance
IEC 60332-1-2
IEC 60332-3-22
Halogen-free
IEC 60754 series
Smoke emission
IEC 61034 series
Characteristic impedance
120 ± 12 Ω @ 1 MHz
Operating temperature
-25 °C – 80 °C
