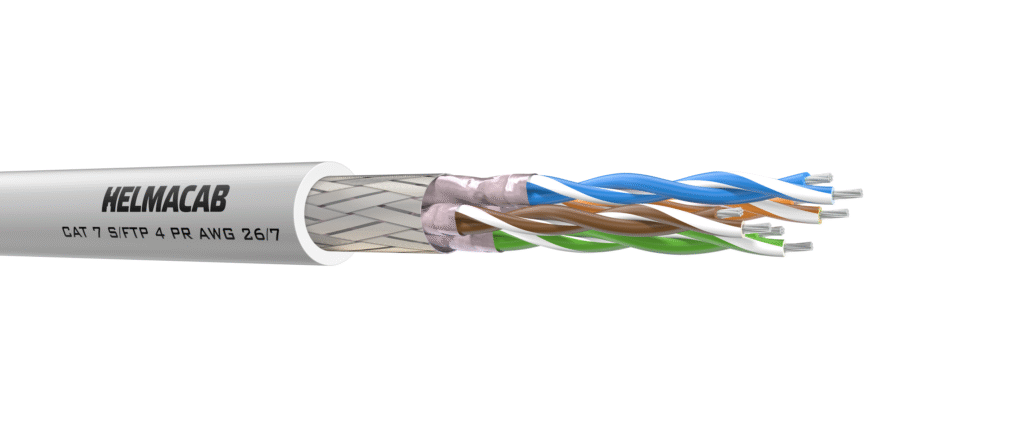

Conductor
Stranded tinned copper conductor 26 AWG/7
Insulation
Foam PE
Pair shielding
Aluminium foil
Shielding
Tinned copper wire braid
Sheath
LSZH
Reference standard
IEC 61156-5 & ISO/IEC 11801
Core identification
Pair colours:
1. White/Blue stripe & Blue
2. White/Orange stripe & Orange
3. White/Green stripe & Green
4. White/Brown stripe & Brown
1. White/Blue stripe & Blue
2. White/Orange stripe & Orange
3. White/Green stripe & Green
4. White/Brown stripe & Brown
Tensile strength
Max. recommended pulling tension: 80 N
Min. Bending Radius (Installation/fixed)
8 x Ø
Nominal Outer Ø
6.4 ± 0.3 mm
Cable Weight
39 kg/km
Marine Type Approvals
DNV, LR, RINA
Fire performance
IEC 60332-1-2
IEC 60332-3-22
IEC 60332-3-22
Halogen-free
IEC 60754 series
Smoke emission
IEC 61034 series
Max. Conductor resistance (DC)
145 Ω/km @ 20 °C
Max. Conductor resistance (loop) (pair, max 20 °C) (ohm/km)
max. 29 Ω/100m @ 20 °C
Nom. Mutual capacitance (nF/km)
≤ 5.6 nF/100 m @ 1kHz
Capacitance unbalance pair to ground
≤ 1600 pF/km @ 1kHz
Min. insulation resistance (20 °C)
5000 MΩ/m
Characteristic impedance
100 ± 25 Ω @ 100 MHz
Rated temperature
+75 °C
Operating temperature
-20 °C to +75 °C
| F (MHz) |
ATT (dB/100 m) |
RL (dB) |
NEXT (dB) |
PS NEXT (dB) |
ACRF (EL FEXT) (dB/100 m) |
PS ACRF (PS EL FEXT) (dB/100 m) |
PD (ns/100 m) |
|---|---|---|---|---|---|---|---|
| 4.0 | 4.9 | 32 | 107 | 95 | 117 | – | 463 |
| 8.0 | 6.8 | 32 | 107 | 98 | 107 | – | 457 |
| 10.0 | 7.6 | 35 | 105 | 96 | 100 | – | 456 |
| 16.0 | 9.6 | 34 | 104 | 95 | 116 | – | 453 |
| 20.0 | 10.8 | 43 | 117 | 98 | 106 | – | 452 |
| 25.0 | 12.2 | 40 | 115 | 100 | 103 | – | 451 |
| 31.2 | 13.7 | 39 | 107 | 100 | 108 | – | 450 |
| 62.5 | 19.7 | 42 | 114 | 102 | 113 | – | 447 |
| 100 | 25.1 | 39 | 102 | 100 | 109 | – | 446 |
| 200 | 35.9 | 37 | 111 | 104 | 102 | – | 445 |
| 250 | 40.1 | 33 | 104 | 99 | 112 | – | 444 |
| 300 | 44.3 | 33 | 114 | 101 | 109 | – | 444 |
| 600 | 63.9 | 27 | 102 | 93 | 106 | – | 443 |
