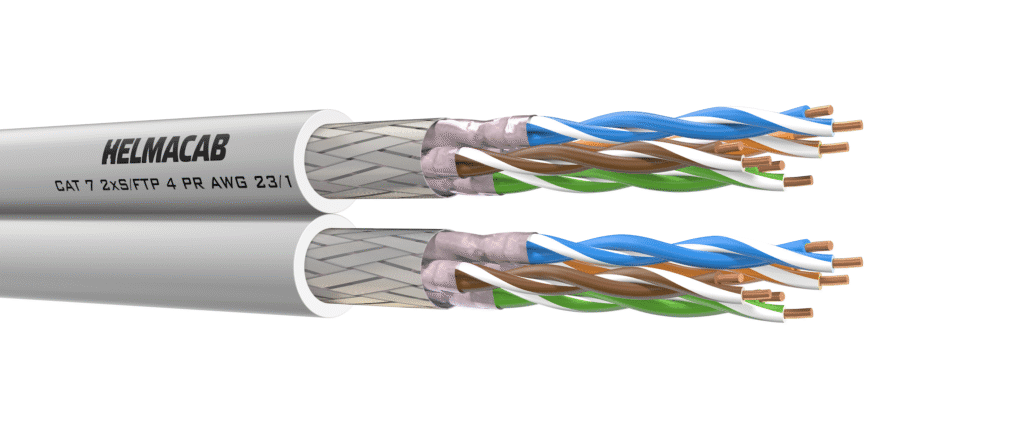

CAT 7 2xS/FTP 4 PR AWG 23/1

Conductor
Solid copper conductor 23 AWG/1
Insulation
Foam PE
Pair shielding
Aluminium foil
Shielding
Tinned copper wire braid
Sheath
LSZH
Reference standard
IEC 61156-5
ISO/IEC 11801
Core identification
1. White /Blue Stripe & Blue
2. White/Orange Stripe & Orange
3. White/Green Stripe & Green
4. White/Brown Stripe & Brown
Tensile strength
MAX. RECOMMENDED PULLING TENSION: 80 N
Min. Bending Radius (Installation/fixed)
8 xØ
Nominal Outer Ø
7.1 ± 0.3 mm x 14.3 ± 1 mm
Cable Weight
132 kg/km
Packaging
500 m box
1000 m drum
Fire performance
Dca s2, d2, a1
IEC 60332-1-2
IEC 60332-3-22
Max. Conductor resistance (DC)
95 Ω∕km @ 20 °C
Max. Conductor resistance (loop) (pair, max 20 °C) (ohm/km)
max. 19Ω/100m @20 °C
Nom. Mutual capacitance (nF/km)
≤ 5.6 nF/100 m
Capacitance unbalance pair to ground
≤1600 pF/km @1kHz
Min. insulation resistance (20 °C)
5000 MΩxkm
Characteristic impedance
100±25Ω@100 MHz
Rated temperature
75 °C
Operating temperature
-20 – 75 °C

F
(MHz)
ATT
(dB/100 m)
RL
(dB)
NEXT
(dB)
PS NEXT
(dB)
ACRF (EL FEXT)
(dB/100 m)
PS ACRF (PS EL FEXT)
(dB/100 m)
PD
(ns/100 m)
4.0 3.6 30 98 95 96 92 449
8.0 5.0 32 98 95 94 89 444
10.0 5.6 35 98 95 91 90 442
16.0 7.2 35 98 95 81 76 440
20.0 8.1 38 99 96 81 77 439
25.0 9.1 39 98 95 84 76 438
31.2 10.0 39 97 94 83 77 437
62.5 14.5 34 95 92 79 76 436
100.0 17.7 32 92 89 82 73 435
200.0 26.1 30 88 85 69 66 434
250.0 27.9 28 86 83 74 65 434
300.0 31.9 27 86 83 69 64 433
400.0 37.8 28 83 80 59 56 433
500.0 40.7 23 81 78 56 51 433
600.0 45.8 25 80 77 58 52 433
